Metric |
Imperial
|

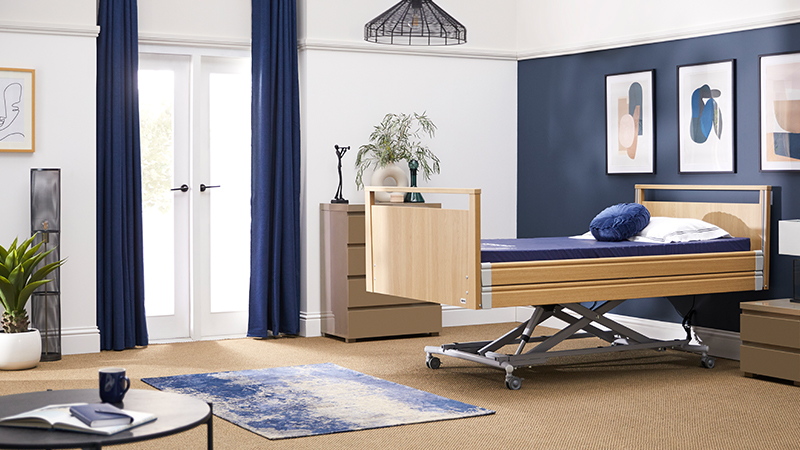

Height Range (floor to top of mattress platform) |
245-730mm | 9½-28¾” |
External Length
|
2080mm |
82" |
External Width
3ft/90cm Single 3ft6/105cm Wide Single 4ft/120cm Small Double |
1050mm 1200mm 1350mm |
41" 47” 52¾” |
External Height (in lowest position) |
720mm | 28¼” |
External Height (in highest position) |
1200mm |
47¼" |
Mattress Platform Length |
2000mm
|
78¾” |
Mattress Platform Width
3ft/90cm Single 3ft6/105cmWide Single 4ft/120cm Small Double |
900mm 1050mm 1200mm |
35½” 41½" 47¼" |
Maximum User Weight
|
170kg | 26¾st
|
Safe Working Load
|
205kg | 32¼st
|
Back Rest Length
|
745mm
|
29¼”
|
Thigh Rest Length
|
350mm
|
13¾”
|
Calf/Foot Rest Length
|
540mm
|
21¼”
|

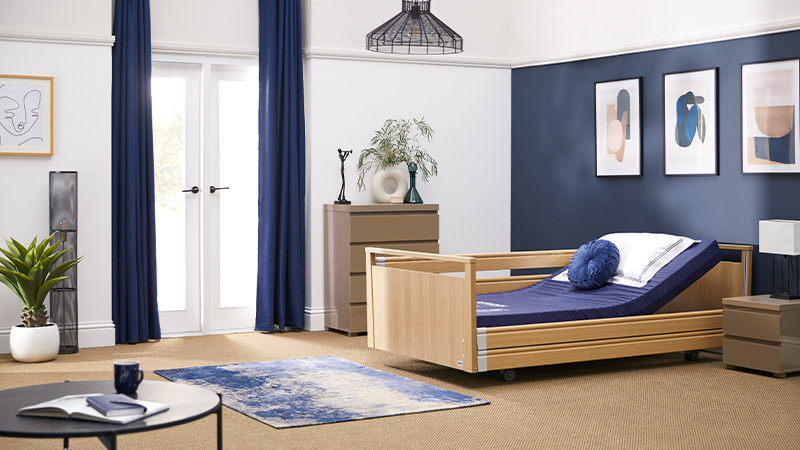

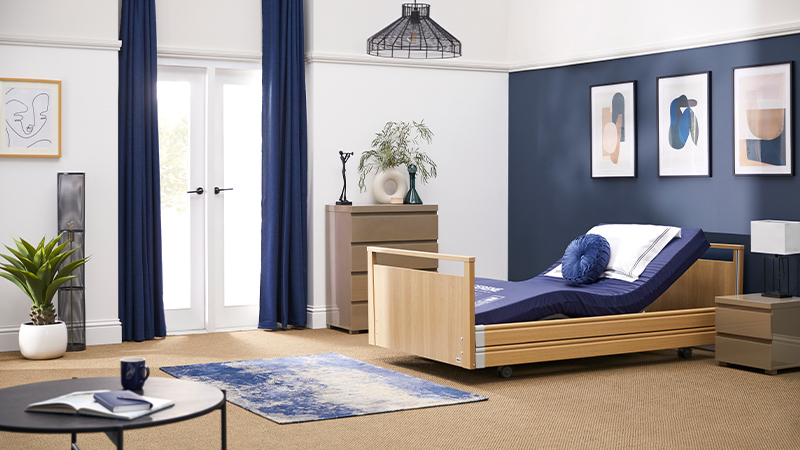

Maximum Back Rest Angle
|
70º
|
|
Maximum Leg Rest Angle
|
30º
|
|
Power Cord Length
|
2100mm
|
82¾”
|
Hoist Clearance
|
130mm | 5¼”
|
4 Braked Twin Castors
|
70mm | 2¾” |
Electric Shock Protection (DIN EN 60601-1)
|
Class II, Type B
|
|
Ingress Protection (EN 60529)
|
IPX4
|
|
Battery for Emergencies (EN 60601-2-52)
|
9V Block Battery (Alkaline Manganese type 6LR61)
|
|
Warranty
|
3 years parts and labour (+2 years optional extension)
|
|
