SKU:BPL013-ORUF1
Prefer to purchase over the phone?
Call us on 0333 222 8584

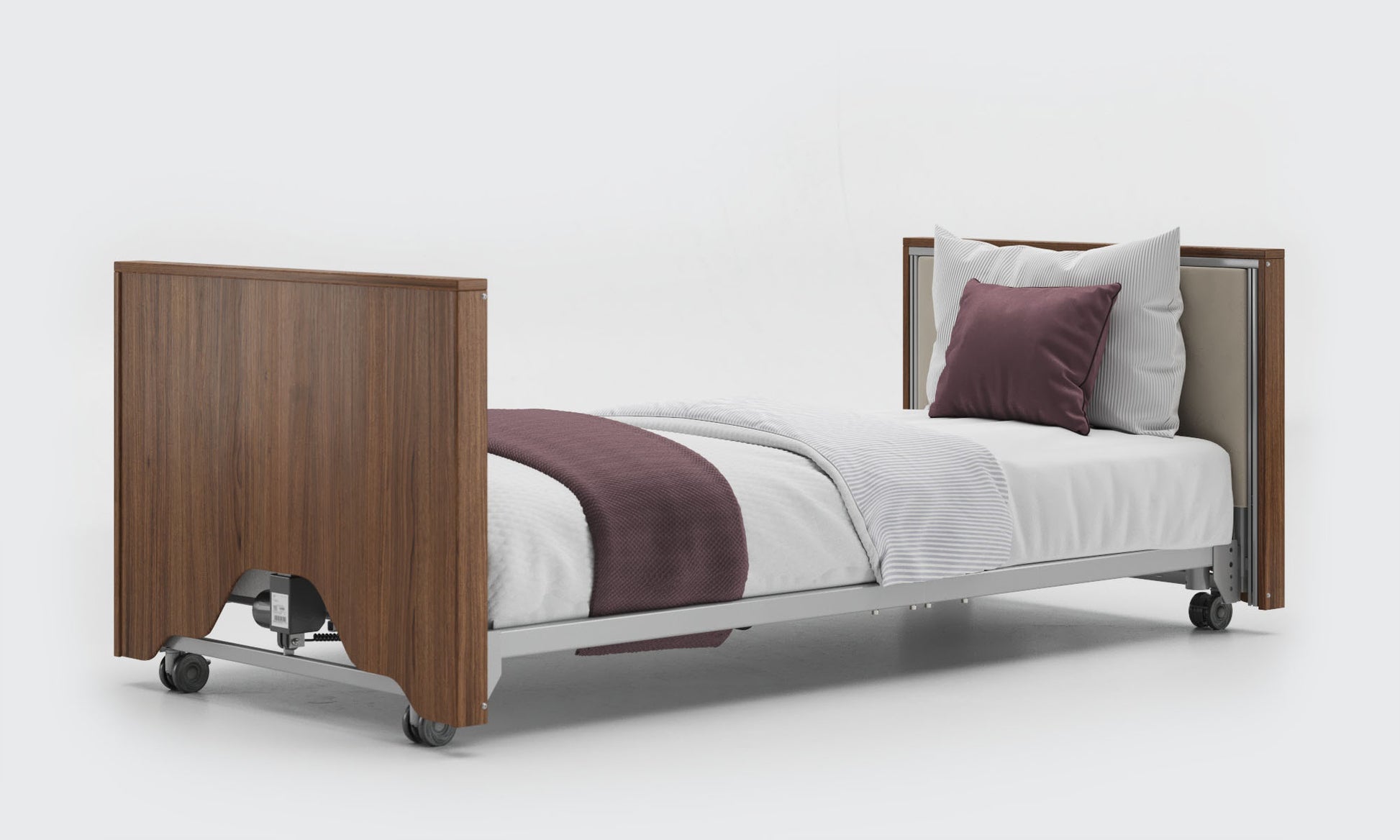

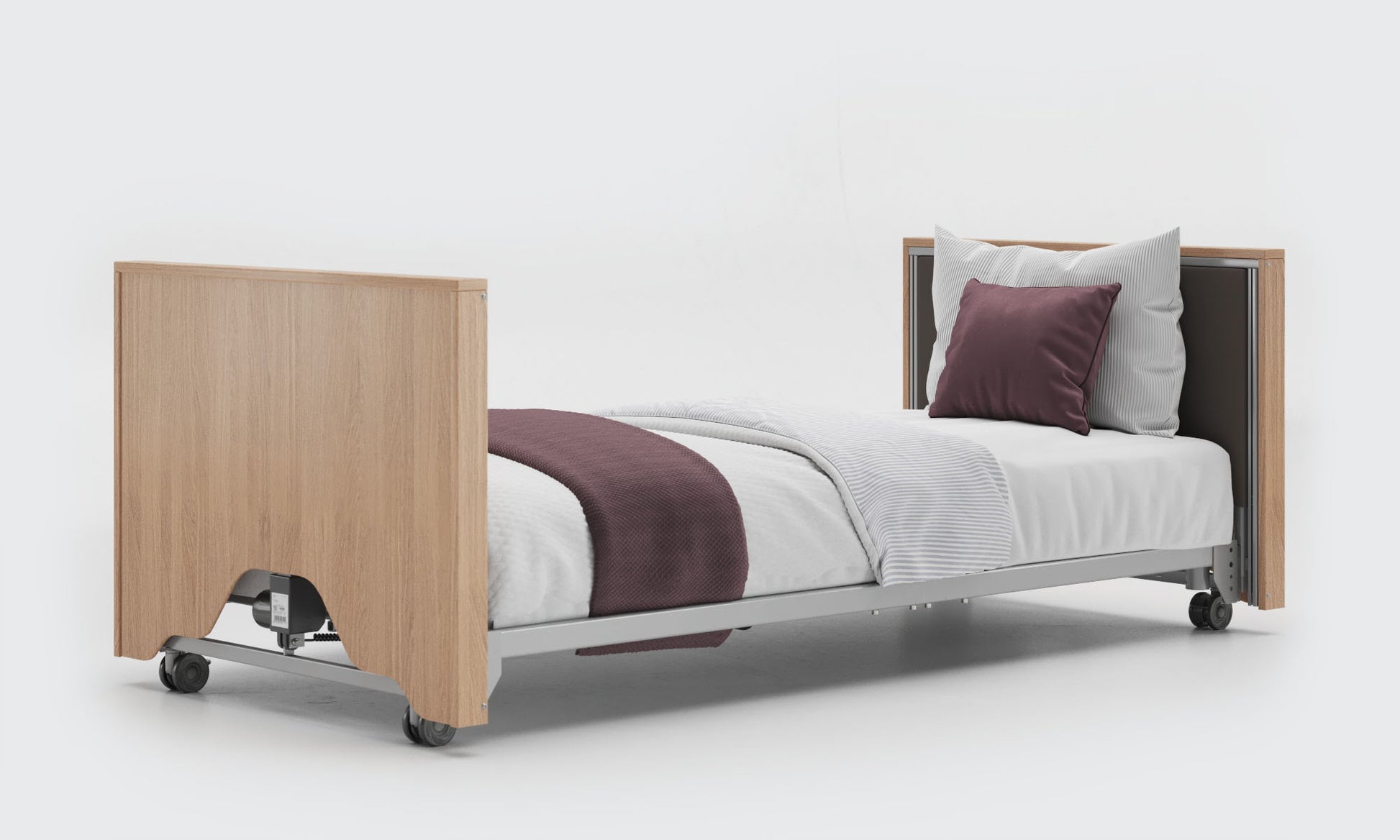

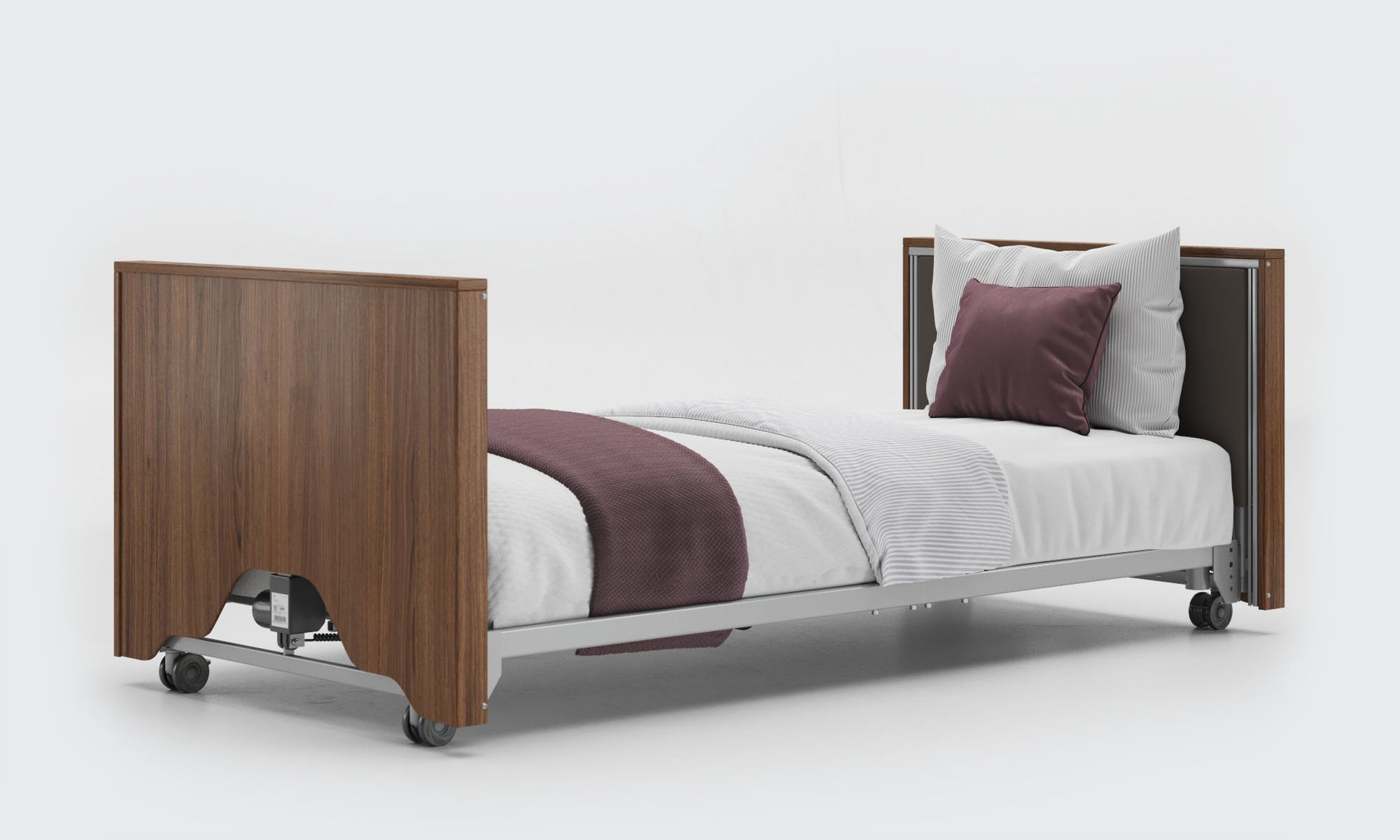

With the Classic Low Upholstered, you can add a personal touch with a choice of six different fabrics, for the upholstered inlay head and foot boards, and three wood colours for the frame.
|
|
Metric |
Imperial
|
| Height Range (floor to top of mattress platform) |
220-620mm | 8½-23” |
| External Length
|
2080mm |
86" |
| External Width |
1055mm |
41½” |
| External Height (in lowest position) |
815mm | 32" |
| External Height (in highest position) |
1225mm |
48¼" |
| Mattress Platform Length |
2000mm
|
78¾” |
| Mattress Platform Width |
900mm |
35½” |
| Maximum User Weight
|
185kg | 29st
|
| Safe Working Load
|
220kg | 34½st
|
| Back Rest Length
|
745mm
|
29¼”
|
| Thigh Rest Length
|
350mm
|
13¾”
|
| Calf/Foot Rest Length
|
540mm
|
21¼”
|
| Maximum Back Rest Angle
|
70º
|
|
| Maximum Leg Rest Angle
|
30º
|
|
| Power Cord Length
|
2100mm
|
82¾”
|
| Hoist Clearance
|
Unrestricted | |
| 4 Braked Twin Castors
|
100mm
|
4”
|
| Electric Shock Protection (DIN EN 60601-1)
|
Group 2, Class B (CISPR11)
|
|
| Ingress Protection (EN 60529)
|
IPX4
|
|
| Battery for Emergencies (EN 60601-2-52)
|
9V Block Battery (Alkaline Manganese type 6LR61)
|
|
| Warranty
|
3 years parts and labour (+2 years optional extension)
|
|
|
|
