SKU:BPL011-B
Prefer to purchase over the phone?
Call us on 0333 222 8584

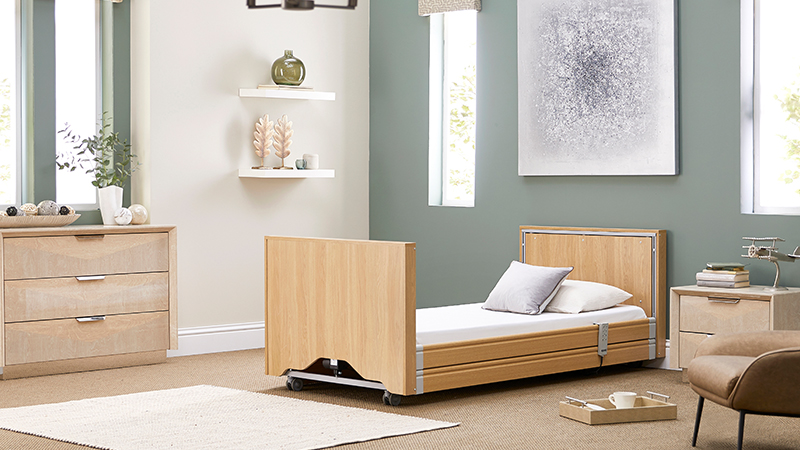

Pleasantly styled bed that lowers close to the floor to reduce falls injury risk and ease access into bed.
|
|
Metric |
Imperial
|
| Height Range (floor to top of mattress platform)
|
220-620mm
|
8½-23”
|
| External Length | 2180mm | 86" |
| External Width | 1055mm | 41½" |
| External Height (in lowest position) | 815mm | 32" |
| External Height (in highest position) | 1225mm | 48¼" |
| Mattress Platform Length | 2000mm | 78¾”
|
| Mattress Platform Width | 900mm | 35½”
|
| Maximum User Weight | 185kg | 29st |
| Safe Working Load | 220kg | 34½st
|

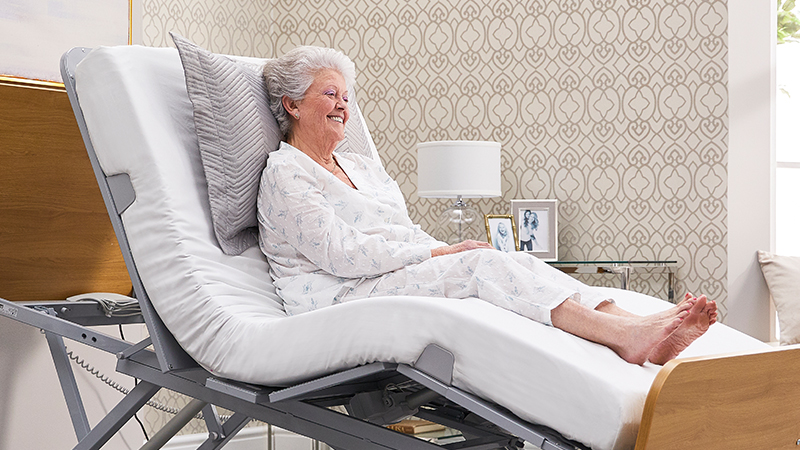

| Maximum (Anti-) Trendelenburg Angle
|
11.5º
|
|
| Maximum External Length (in Trendelenburg)
|
2300mm
|
90½”
|
| Back Rest Length
|
745mm
|
29¼”
|
| Thigh Rest Length
|
350mm
|
13¾”
|
| Leg Rest Length
|
540mm
|
21¼”
|
| Maximum Back-rest Angle
|
70º
|
|
| Maximum Leg-rest Angle
|
30º
|
|
| Power Cord Length
|
2100mm
|
82¾”
|
| Hoist Clearance
|
Unrestricted | |
| 4 Braked Twin Castors
|
100mm | 4" |
| Electric Shock Protection (DIN EN 60601-2)
|
Group 2 Class B (CISPR11)
|
|
| Ingress Protection (EN 60529)
|
Power supply is IPX4, Motor units are IPX4, Control Box is IPX6 and the Handset is IPX4
|
|
| Battery for Emergencies (EN 60601-2-52)
|
9V Block Battery (Alkaline Manganese type 6LR61)
|
|
| Warranty
|
3 years parts and labour (+2 years optional extension) | |
|
|
