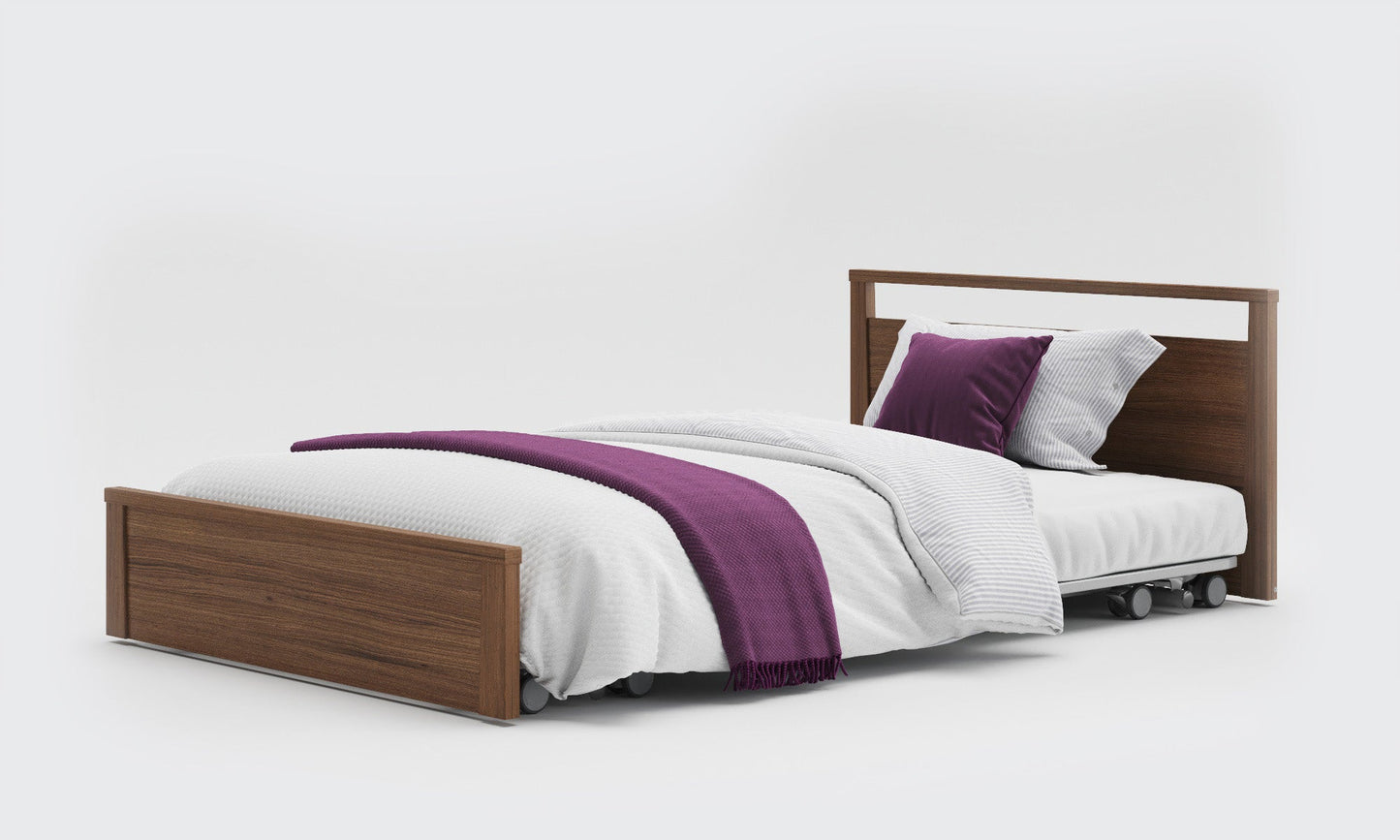

About the Solo Low Footboard Profiling Bed

The Solo Low Footboard is styled for residential environments with a low, minimalist footboard to provide unrestricted access and sight at the foot-end of the bed.

Features of this product

Ultra-Low Height

The bed lowers to just 11cm from the floor, providing a safe sleeping height that minimises the risk of falls. This feature allows for the omission of side rails if preferred.

Adjustable Height Range

The bed can be elevated to a comfortable height, facilitating easier transfers and reducing back strain for caregivers.

Auto-Regression Technology

Equipped with an advanced auto-regression feature, the backrest elevates while keeping the mattress in place, preventing stomach compression and promoting better respiratory function.

Length Extension for Taller Users

An integrated length extension adds an extra 20cm to the bed, accommodating taller individuals. A mattress infill is available for seamless extension.

Anti-Trendelenburg Positioning

The bed offers an in-bed tilt position, raising the head higher than the legs to aid in pressure relief and improve respiration and circulation.

Unrestricted Hoist Access

Designed with clearances beneath the bed, it allows for easy use of hoists and standing aids.

User-Friendly Wired Handset

Comes with a wired handset featuring backlit buttons for easy operation, conveniently clipping onto the side of the bed when not in use.

Metric
Imperial
Height Range (floor to top of mattress platform)
110-735mm
4¼-29”
External Length
2080mm
82"
External Width
- 90cm/3ft Single
- 105cm/3ft6 Wide Single
- 120cm/4ft Small Double

1040mm
1190mm
1340mm

41"
47”
52¾”
External Height (in lowest position)
780mm30¾”
External Height (in highest position)
1300mm
51¼"
Mattress Platform Length
2000mm
78¾”
Mattress Platform Width
- 90cm/3ft Single
- 105cm/3ft6 Wide Single
- 120cm/4ft Small Double

900mm
1050mm
1200mm

35½”
41½"
47¼"
Maximum User Weight
170kg26¾st
Safe Working Load
205kg32¼st
Back Rest Length
745mm
29¼”
Thigh Rest Length
350mm
13¾”
Calf/Foot Rest Length
540mm
21¼”
Maximum Back Rest Angle
70º
Maximum Leg Rest Angle
30º
Power Cord Length
2100mm
82¾”
Hoist Clearance
130mm5¼”
4 Braked Twin Castors
70mm2¾”
Electric Shock Protection (DIN EN 60601-1)
Class II, Type B
Ingress Protection (EN 60529)
IPX4
Battery for Emergencies (EN 60601-2-52)
9V Block Battery (Alkaline Manganese type 6LR61)
Warranty
3 years parts and 1 year labour (+2 years optional extension)
